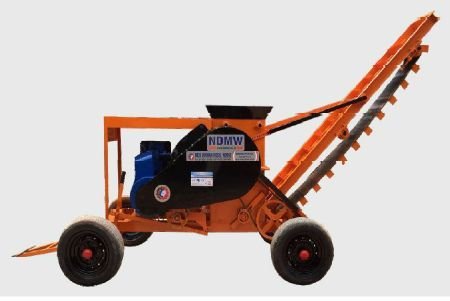

Leading Manufacturers and Wholesaler of Brick Crusher Machine With Conveyor, Brick Crusher Machine With Engine and Brick Crusher Machine With Motor & Engine from Fatehgarh Sahib.
| Business Type | Manufacturer, Supplier |
| Frame Material | Heavy Duty M.S Plates Size 18mm, 16mm,16mm |
| Channel Size | 100X50 ,Angles ,Flates ,Nut-Bolt & Other Accessories |
| Tyre | New Tractor Tyre 6:16, No Of Tyre 4, Taper Roller Bearing |
| Driven By | Rotation |
| Crushing Unit | Engine 12Hp, Air Cooled, Piston Size 114mm, Motor 10hp/415V |
| Flying Wheels Material | Heavy Duty 25mm Plates |
| Shaft Material | Heavy Duty Cast Iron |
| Bearings | Taper Roller Bearings |
| Input Size | Length 920mm, Thickness 102mm |
| Output Bearings | Cam 6216: 2 Nos, 6312 Ball Bearing |
| Max. Size | Normal Sized Brick (244X100X75mm Approx) |
| Min. Size | Adjustable Crushed Pieces Size |
| Capacity | 80mm |

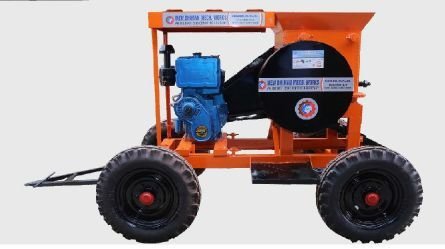

| Business Type | Manufacturer, Supplier |
| Usage | Crushing Bricks |
| Frame | Made From Heavy Duty M.S Plates Size 18mm, 16mm,16mm |
| Channel Size | 100X50 |
| Driven By | Diesel Engine 10Hp Air Cooled |
| Crushing Unit | Made From Heavy Duty 25mm Plates |
| Flying Wheels | Heavy Duty Made From Cast Iron |
| Shaft | Length 910mm, Thickness 102mm |
| Bearings | 4 Bearings In Cam 6216, 2 Nos 6312 Ball Bearing |
| Input | Normal Sized Brick (244X100X75mm Approx) |
| Output | Size Of Crushed Pieces Can Be Adjust |
| Max. Size | 80mm (Approx) |
| Min. Size | 20mm (Approx) |
| Capacity | 40 Min. 220 Square Ft. |
| Dimension | 1850X1520X1820 |
| Additional Features | Heavy Foundation, New Bearing Technology, Heavy Transmission Gear, Weight-950 Kg |

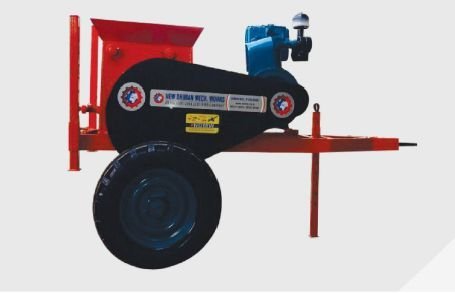

| Business Type | Manufacturer, Supplier |
| Usage | Crushing Bricks |
| Frame Size | 18mm, 16mm |
| Channel Size | 100X50 |
| Tyre | New Tyre, 2 Tyres |
| Motor | 7.5 Hp, 1440 Rpm |
| Crushing Unit Material | Heavy Duty 25mm Plates |
| Flying Wheels | 2 Heavy Duty Cast Iron |
| Shaft Length | 850mm |
| Shaft Thickness | 102mm |
| Bearings | 4 Bearings (2x6216, 2x6312) |
| Input Size | 244X100X75mm |
| Output Size | Adjustable |
| Max. Size | 80mm |
| Min. Size | 20mm |
| Capacity | 40 Min. - 220 Sq Ft |
| Dimensions | 1850X1520X1820 Mm |
| Weight | 820 Kg |
